- Autel MaxiSys MS909 Intelligent Diagnostics Tool, Upgrade of MaxiSys Elite , Topology Map, Repair Tips, ECU Programming/ Coding, 36+ Service

• Auto Scan for Full System Diagnostics

The Auto Scan function performs a comprehensive scanning of all the systems in the vehicles. The systems include but are not limited to ECM, PCM, TCM, ABS, RCM, IPC, ACM, AHCM, APIM, BCMii, DDM, FCDIM, FCDIM, FCIM, FDSM, GPSM, HCM, HVAC, IPM-A, etc., and it displays according to specific vehicle brands and models.

• Topology Mapping Makes the Diagnostic Results More Readable &Comprehensive

The systems diagnostics result scanned by the scanner will be displayed in topology module mapping, which shows a system distribution diagram of the vehicle control modules and the relationship between vehicle systems. You can enter any specific system to see more detailed diagnostic information. On the Topology screen, a system with identified faults will display in orange, making the diagnosis results are clear at a glance, which is convenient for mechanics to perform systematic and comprehensive diagnostics and analysis.

Intelligent Diagnostics – Your Specialist Diagnostic Helper

The Intelligent Diagnostic Functions integrated on Autel scan tool MS909 provide every professional mechanic with massive and substantial information of faults detected and offer you exhaustive and comprehensive repair assistance.

• Tech Services Bulletins – see official announcements issued by vehicle manufacturers regarding common problems including vehicle modules, DTCs, repair methods, pro/gram updates, and recall strategies.
• DTC Analysis - contain repair assistance and information related to the fault codes, including the fault description, condition, fault influence, possible cause, and possible solution. The repair assistance information varies vehicle.
• Repair Assistant - display a list of recommended tests, the completion status, and priority for the undertaking. The higher the priority, the earlier the components should be tested. There are a location diagram and wiring diagram to help you to locate the components, connectors, wiring, and ground electrodes.
• Repair Tips - display a range of diagnostic and repair steps, including the information needed in order to clear the faults. The repair steps are provided in text and video.
• Component Measurement - direct technicians to an oscilloscope in one click. This section may include relevant waveforms and waveform analysis to aid the technician in diagnostics and repairs.
• Relevant Cases - recommend repair processes that may be relevant to the vehicle and fault. These repair cases/suggestions provide the technician with great insight when diagnosing and repairing vehicle faults.

Advanced E~~U pro/gramming & co_ding for Better Vehicles Performance

The co_ding and pro/gramming function of the scanner MS909 is used to code adaptive data of certain components after making repairs or replacements as well as update the computer software of the vehicle to the latest version. Available pro/gramming or co_ding operations vary by test vehicle.

• co_ding: also known as Teach-in pro/gram, or Component Adaptation, is used to code adaptive data for vehicle control modules or change parameters after repairs, replacements, or retrofitting of vehicle parts such as injectors, radios and or even starters, etc. It can also be used to flash hidden functions to make vehicles achieve higher performance.

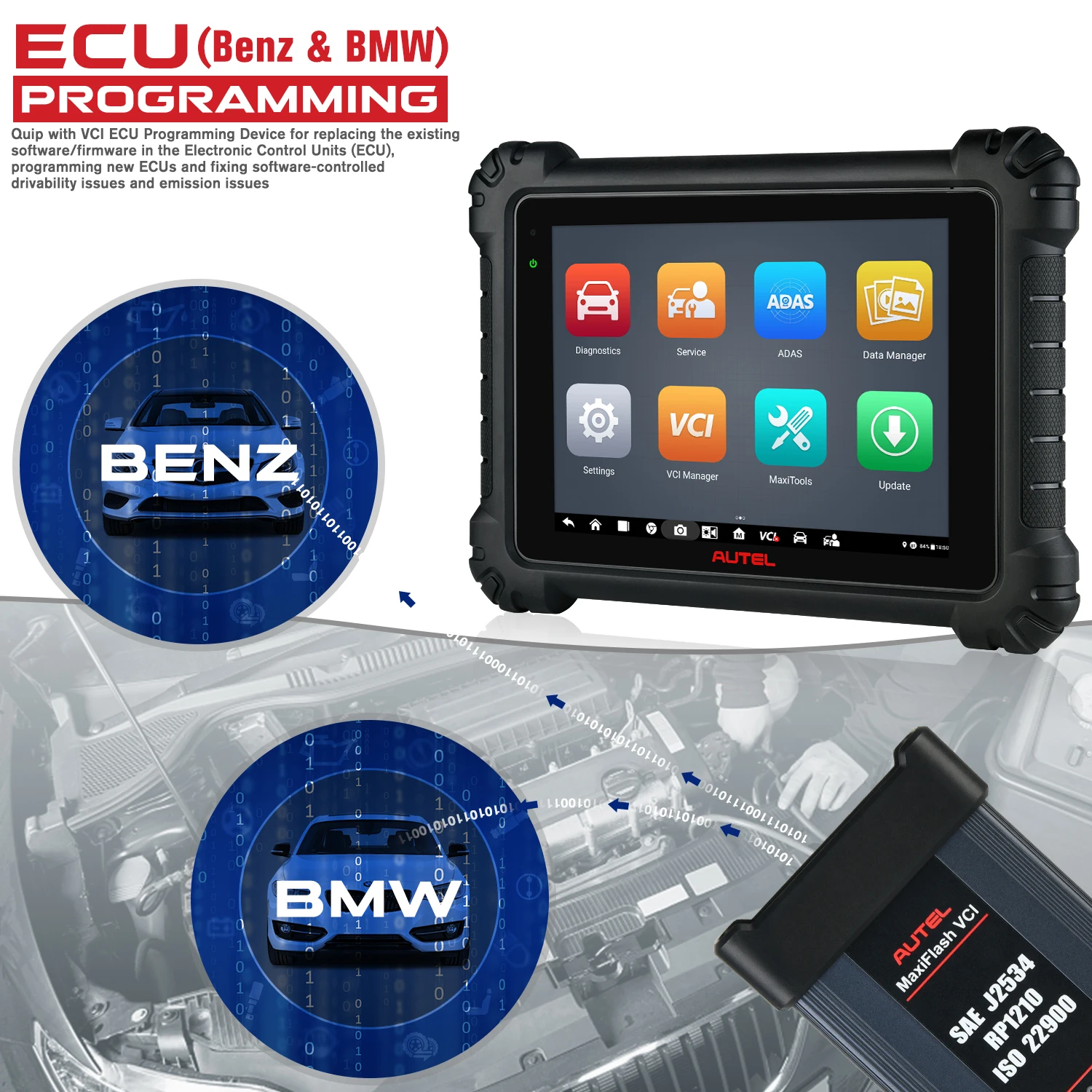

• Repro/gramming: download the latest version of the software from the online server database through Internet access to update E~~U s, and repro/grams the newest version into the vehicle's E~~U . A series of on-screen operational instructions will display to guide you through the pro/gramming procedure. Autel provides its own server for BMW & BENZ software. All other OEM flashing software can be purchased separately and used with the MS908P VCI device.
